Hustler Turf Super 104

Super 104

The Super 104 is an affordable wide-area mower with the maneuverability of a zero-turn.

  • Features include Kawasaki FX1000 engine, 104” cutting width, Hyper-Drive System, Grammer premium suspension seat (standard), simple, service friendly design, and hydraulic wing deck lift. The Super 104 can mow up to 84 acres in 8 hours at 10mph and will mow where most wide-area mowers cannot.
  • Wide area 104" width of cut

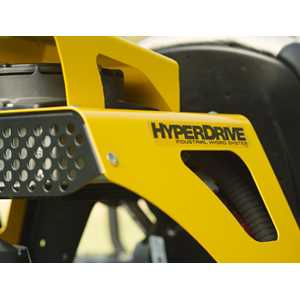

  • HyperDrive™ Hydro System - Industrial Grade Pumps and Motors
  • Simple design
  • SmoothTrak™ Steering - responsive precise control
  • Kawasaki FX Premium Commercial Duty Engines - 3yr warranty
  • 11 mph

Warranty:

  • 2 year/no hour limit OR 5 year/500 hour limited warranty

Contact your Sales Rep for Fleet Pricing
117692 Kit, Anti-Scalp Ugrade B14 $293.00
931733 Super 104, 35hp Kawasaki FX1000 / 104" RD Grammar Suspension Seat B14 $29,820.00
117257 104" Mulch Kit - includes wavy mulch blades B14 $251.00
110153 Kit, Light B14 $229.00
353961 Kit, Steering Lever Extension B14 $36.00
Starter 12-volt
Ignition Electronic
Charging System 12-volt
Fuel Unleaded gasoline
Fuel Filter Replaceable, automotive-type
Air Filter Heavy-duty air cleaner to extend the service interval for excessive, dirty applications and improved performance
Cooling Air cooled. Fly-wheel fan
Governor Mechanical
Drive System Type Dual hydrostatic. Individual pumps power two direct-drive wheel motors. Hydrostatic system operates on 15W50 Mobil 1 synthetic motor oil. Transmission drive (oil) cooler for increased system life.
Pumps Two variable displacement, slipper piston pumps. Each pump powers one drive-wheel. Sauer Danfoss DDC-20
Pump Drive B Section V-belt drive from engine crankshaft. Large pulley and idler diameters for longer belt life.
Hydraulic Lines Stainless-steel, high-pressure lines with Parker SealLok™ O-Ring Face-Seal fittings.
Cooling Large capacity cooler with 9 inch fan for extended hydraulic life
Final Drive Direct-drive high-torque wheel motors. One for each drive wheel. Parker TG0280 with hot oil shuttle
Filter Internal
Ground Speed Infinitely variable
Ground Speed forward 0-11mph (0-17.7 kph)
Ground Speed reverse 0-7.5 mph (0-12.07 kph)
Steering SmoothTrak™ twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls
Turning Radius True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
Brake Service Hydrostatic dynamic braking
Brake Parking Automotive-style drum brakes. When steering levers are placed in park position, integral park brakes are automatically engaged
Tires Front 15 x 6.0 – 6, rib tread, pneumatic
Tires Drive 26 x 12 – 12, turf tread
Fuel System 12 US gal (45.4 l)
Hydraulic Oil 3 US gal (11.36 l)
Safety Features Standard foldable ROPS with seat belt. Operator presence system connected to seat, deck clutch and park brake switches. Stabilizer wheels at rear of lawn mower. Rear discharge deck with deflectors.
Seat Grammar suspension seat with isolator platform
Construction Main frame is 1.5 in x 3 in x .187 in (3.8 cm x 7.62 cm x .47 cm) rectangular steel tubing with internal gusset in frame bend. Drive motors mounted to 7 ga (.45 cm) welded steel. Front caster wheels mounted with ball bearings on each wheel. Front caster forks are .5 in (1.27 cm) steel
Controls Hand-operated choke, throttle, ignition switch, electric mower clutch. Integrated parking brakes
PTO Clutch 250 ft. lbs.
Indicators Hour meter, engine warning light
Cup Holder Cup holder molded into the left side fuel tank. Accommodates nearly any cup size.
Height ROPS folded down 54 in (137 cm)
Height ROPS up 71.5 in (181.6 cm)
Overall width with wings down 106.1 in (269.5 cm)
Overall width with wings up at gauge wheels 80.0 in (203.2 cm)
Overall width with wings up at deck base 72.5 in (184.2 cm)
Tire-to-tire width 60.3 in (153.2 cm)
Weight 2350 lbs (1065.9 kg)
Deck Rear-Discharge 104”
Deck Type Free-floating mower using five blades. Center deck is suspended at the corners, houses 3 blades and includes five deck mounted adjustable anti-scalp rollers. Two wing decks house one blade each and are attached to the center deck with pivoting mounts. Outside of wings are suspended with adjustable casters and have one adjustable anti-scalp wheel each.
Deck Construction Welded steel. 1.5 in x .375 (2.55 cm x .95 cm) steel bars reinforce impact areas on trim edges. Gusset style, box section reinforces front edges. Reinforcements welded onto spindle mount areas.
Cutting Heights Foot-operated deck height adjustment. Pin for setting height, detent for transport position. Height adjustment in .25 in increments from 1 in to 5.5 in (2.55 cm to 13.97 cm).
Deck Lift Hydraulic powered deck and wing lift. Raise and lower deck from driver’s seat with simple foot-operated deck height switch. Pin for setting height, transport position. Change cutting heights, climb curbs and trailer more easily. Raise and lower deck wings with a hand operated switch on the instrument panel.
Spindles Ductile iron casting with steel shafts and sealed ball bearings
Mowing Blades Heavy-duty, heat-treated, low sail steel Fusion™ blades.
Deck Drive Belt drive from engine with electric clutch to center deck spindle. Belt drive from center deck outer spindles to each wing. Spring tension idler and large pulleys to extend belt life.
Width of Cut 103.75 in (263.5 cm)
Trim Capacity (left side) 22.0 in (55.88 cm)
Trim Capacity (right side) 22.0 in (55.88 cm)

Mulch Kit – Nearly every Hustler deck has an optional Mulch Kit. No more handling clippings. Recycle them back into the soil and reclaim nutrients.

Flex Forks™ – Shock-absorbing front-caster forks that improve operator comfort and provide a more even cut especially over uneven terrain and at higher speeds. Flex Forks fit nearly any Hustler z-rider.

Steering Extension Kit – Steering levers can be adjusted in several ways to make your mowing experience as comfortable as possible.

Light Kit – Work later with our optional Light Kit. Fits Mini FasTrak, FasTrak, FasTrak SD, Hustler Z, and Super Z.
All prices, descriptions, and specifications subject to change without notice. Items may not be exactly as illustrated.
